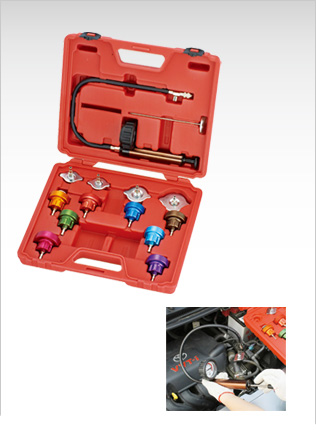

Universal Radiator Pressure Tester Kit
Remove the original radiator cap while
the engine is cold.
Choose an test ca suiting the connection type
onto the radiatorl. Screw the cap onto the radiator,
making sure that the rubber gasket has been placed
correctly.
Connect the pump to the test cap through the quick
coupling on the hose end.
Pump until presure is aproximately 10~15 psi. If the
gauge pointer does not move for approximately
1 minute, the whole circuit is perfectly efficient; if it
goes down, and no fluid discharges can be located,
check whether the engine head gasket is worn.
Finally, release pressure through the button next to
the quick coupling, and put away the device, after
removing any fluid or dirt.
